LAPP Cable

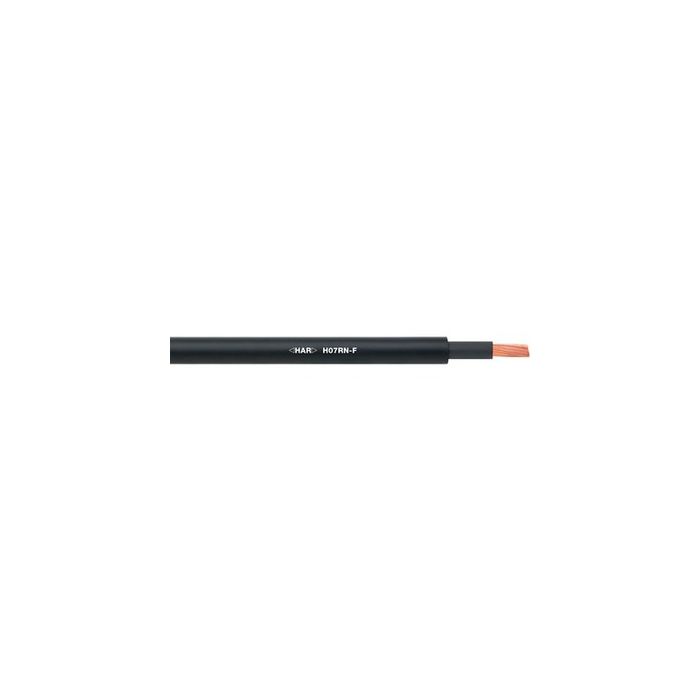

Heavy standard construction cable

H07RN-F, HAR, power and control cable, rubber, heavy, 450/750 V, industrial and agricultural use, class 5, -25°C to +60°C, oil-resistant, flame-retardant
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name H07RN-F
Extended Description Benefits
  • For mechanically more demanding applications
  • 1000 V AC at protected + static laying
  • Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520
Applications
  • Handheld and power supply devices according to EN 50565-2
  • Medium, mechanical stress
  • Industrial, agricultural use
  • According to EN 50565-2: In dry, damp and wet rooms as well as for fixed installation e.g. on the plaster
Features
  • Flame-retardant according IEC 60332-1-2
  • Oil-resistant according to EN 60811-404
Product make up
  • Bare copper wire according to HAR
  • Core insulation: rubber compound, type EI 4
  • Outer sheath: rubber compound, type EM2
Manufacturer Lapp
Cold resistant Yes
UV Resistant Yes
Number of conductors 3
mm2 per conductor 1.0
Protective Conductor Yes
Outer Diameter (mm) 8.3 - 9.6
Copper index kg per km 28.8
Current Rating HTML
  • According to IEC 60364-5-52/ VDE 0298-4
  • EN 50565-1/ VDE 0298-565-1
Benefits
  • For mechanically more demanding applications
  • 1000 V AC at protected + static laying
  • Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520
Current Rating According to IEC 60364-5-52/ VDE 0298-4 | EN 50565-1/ VDE 0298-565-1
Technical Data Core identification code
  • Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
  • From 6 cores: black with white numbers
Conductor stranding
  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius
  • 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage
  • U0/U: 450/750 V
Test voltage
  • 2500 V
Current Rating
  • According to IEC 60364-5-52/ VDE 0298-4
  • EN 50565-1/ VDE 0298-565-1
Temperature range
  • Fixed installation: -25°C up to +60°C
  • Occasionally moved: -25°C bis +60°C
Weight kg per km 130.0000
