1.197.2100.01

1.197.2100.01

Hummel

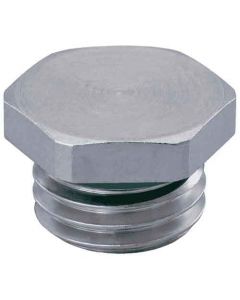

Plug made of brass with thread for hazardous areas

Plug made of brass with thread for hazardous areas from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 1197210001
Temperature Range -20°C to +95°C
Manufacturer Hummel
Weight (kg) 0.02155
Customs tariff number 74122000
EAN code 4033878408513
ETIM 7 EC000032
Packaging Unit 50
Height (mm) 10.5
Certificates ATEX, EAC, INMETRO, IECEx, CE, DNV-GL
RoHS RoHS
External thread (AG) PG 21
Material seals / O-rings NBR
Protection class IP 68 – 10 bar, IP 69 K
Material Nickel-plated brass
Thread length (mm) 7.0000
Tightening torque [Nm] 12.0000
Wrench size 1 (SW1) [mm] 30.0000
Wrench size (SW) [mm] 30.0000
Ex-protection level II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
More Information
Attribute Value
Data Sheet Click here to view
